Aluminum foil jumbo roll designed for sensitive medical packaging is engineered to protect sterile and high-value healthcare products while enabling tamper evident performance in finished packs. Supplied in large master rolls, this foil is optimized for conversion into lidding, sachets, strip packs, pouches, and laminate structures where barrier integrity, seal reliability, and clean conversion are critical. With excellent resistance to moisture, oxygen, light, and odor transmission, aluminum foil remains one of the most trusted substrates for medical and pharmaceutical packaging-especially when paired with coatings, lacquers, or heat-seal layers that deliver visible and irreversible opening evidence.

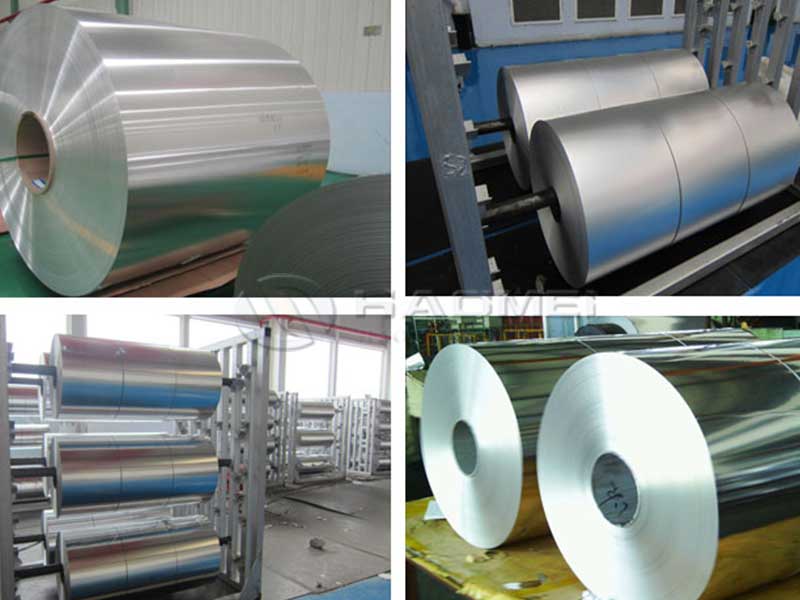

Product form: Aluminum foil jumbo roll (mill finish, coated, lacquered, or laminated-ready)
Typical use: Medical-grade barrier layer + tamper evident pack structures
Core value: High barrier + consistent mechanical properties + compatibility with TE (tamper evident) seal systems
Medical packaging often requires a combination of sterile protection and traceable, irreversible opening cues. Jumbo roll foil supports both by providing a stable web for high-speed converting and by enabling seal designs that produce peel evidence, fiber tear, delamination evidence, or clear "VOID/opened" indications when used with appropriate adhesives and films.
Features for Sensitive Medical Packaging
| Feature | What it means in practice | Customer benefit |
|---|
| Ultra-high barrier | Near-zero light transmission and extremely low gas/moisture permeability | Longer shelf life and better protection of sterile/active products |
| Tamper evident readiness | Works with heat-seal lacquers, peelable layers, delamination structures, and printed TE messages | Clear opening evidence and improved patient safety |
| Clean conversion | Stable gauge, good flatness, low pinhole rate, controlled surface energy (with treatment/coating) | Fewer web breaks, fewer rejects, higher converting efficiency |
| Chemical resistance (typical) | Good resistance to many oils/solvents; coating system selected to match sterilization and contents | Reduced risk of interaction or staining |
| Broad sterilization compatibility | Coating/laminate design can be tailored for EtO, gamma, or steam processes | Packaging integrity maintained through sterilization cycles |
| Printability | Supports flexo/gravure with primers or topcoats; sharp graphics and variable data | Better brand identification, compliance labeling, traceability |
Typical Applications
| Application area | Typical pack format | Why aluminum foil jumbo roll fits |
|---|
| Sterile medical devices | Pouches, formed packs, lids | Barrier + seal consistency; supports sterilization validation |
| Diagnostic and test kits | Sachets, strip pouches | Light and moisture barrier protects reagents and strips |
| Wound care and topical products | Unit-dose sachets, tubes overwrap | Prevents drying, oxidation, and odor transmission |
| Pharmaceutical blisters and strips | Lidding foil, strip pack | Enables push-through or peelable systems with TE options |
| Hospital single-use items | Overwrap and kit packaging | Strong barrier and robust handling performance |
Tamper Evident Feature Options (Conversion-Level)
Tamper evident performance is typically achieved through structure design rather than bare foil alone. Jumbo roll foil acts as the stable barrier layer while the converter selects the sealant/coating to create the desired opening signature.
| Tamper evident approach | Typical structure concept | Opening evidence style |
|---|
| Destructive seal | Foil + aggressive heat-seal lacquer to film | Tear, distortion, or irreversible deformation on opening |
| Peelable TE seal | Foil + peelable lacquer + compatible film | Controlled peel with visible "opened" change in seal track |
| Delamination evidence | Foil laminated to film with TE adhesive | Layer separation leaves an obvious damaged area |
| Message-reveal systems | Printed "OPENED/VOID" pattern + lacquer/adhesive | Hidden text becomes visible after opening |
| Perforation-assisted opening | Foil-based laminate with engineered tear | Easy-open plus obvious pack change |
Recommended Alloys and Tempers
The alloy and temper selection impacts forming, tensile behavior, and pinhole performance-especially important in thin gauges used for medical packs.
| Alloy | Typical temper | Strength/ductility profile | Common medical packaging use |
|---|
| 8011 | H18 / H19 | Strong, good converting behavior | Lidding, sachets, general barrier laminates |
| 8021 | H18 / H19 | Excellent barrier and low pinhole potential at thin gauges | High-end pharma/medical barrier applications |
| 1235 | O / H18 | High purity; good barrier, softer in O temper | Laminations requiring high ductility or specific forming behavior |
Technical Specifications (Typical Supply Range)
Final performance depends on gauge, alloy/temper, coating system, and laminate design. The table below summarizes typical jumbo roll supply options for medical packaging conversion.
| Parameter | Typical range | Notes |
|---|
| Thickness (µm) | 6–30 | Common: 7–25 µm for laminations; thicker for specialty lids |
| Width (mm) | 200–1600 | Customized slitting available |
| Roll OD (mm) | 600–1200 | Depends on thickness and customer handling limits |
| Core ID (inch) | 3 / 6 | Paper or aluminum cores; customer-specified |
| Temper | O / H18 / H19 | Selected per end-use and converting method |
| Surface finish | Bright / matte (single or double) | Matte side improves adhesion in some systems |
| Coating options | Heat-seal lacquer, primer, release, protective topcoat | Tailored to film type and sterilization method |
| Pinhole control | Medical-grade sorting and inspection available | Thin gauges require tighter pinhole management |
| Cleanliness | Low residue, controlled oil | Helps adhesion and reduces odor/contamination risk |
Typical Mechanical Properties (Reference Values)
Values vary with alloy/temper and thickness. Use as guidance for specifying and comparing materials.
| Property | O temper (typical) | H18/H19 (typical) | Test direction notes |
|---|
| Tensile strength (MPa) | 60–110 | 160–220 | MD/TD differ by rolling and gauge |
| Yield strength (MPa) | 30–70 | 140–200 | Higher temper improves web handling |
| Elongation (%) | 3–12 | 1–4 | Higher elongation supports forming and abuse resistance |
Chemical Composition (Typical, wt.%)
Common alloys for medical packaging foils are controlled for consistency and convertibility. Ranges below are typical industry references and may vary by standard and supplier control limits.
Alloy 8011 (wt.%)
| Element | Fe | Si | Mn | Mg | Cu | Zn | Ti | Al |
|---|
| Typical range | 0.6–1.0 | 0.5–0.9 | ≤0.2 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.08 | Balance |
Alloy 8021 (wt.%)
| Element | Fe | Si | Mn | Mg | Cu | Zn | Ti | Al |
|---|
| Typical range | 1.2–1.7 | ≤0.15 | ≤0.2 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.08 | Balance |
Alloy 1235 (wt.%)
| Element | Fe | Si | Cu | Mn | Mg | Zn | Ti | Al |
|---|
| Typical range | ≤0.65 | ≤0.55 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.06 | ≥99.35 |
Performance Considerations for Medical Compliance
| Requirement area | What to specify | Practical guidance |
|---|
| Barrier integrity | Thickness, pinhole class, laminate design | Thinner foils need tighter pinhole control and careful handling |
| Seal reliability | Coating type, seal window, seal strength targets | Define seal temperature/pressure/dwell used on your lines |
| Sterilization stability | Process type and cycle conditions | Match lacquer/adhesive to EtO, gamma, or steam exposure |
| Print and traceability | Primer/topcoat, ink system, barcode legibility | Choose coatings that resist rub and sterilization fade |
| Migration and safety | Food/medical contact declarations as required | Confirm suitability with local regulations and intended use |
Ordering Information (What Customers Commonly Define)
| Item | Options |
|---|
| Alloy/temper | 8011 H18/H19, 8021 H18/H19, 1235 O/H18 |
| Thickness/width | Custom within stated ranges |
| Surface | Bright/matte configuration |
| Coating | Heat-seal lacquer, primer, protective coat, release layer |
| Roll format | OD, core ID, splice policy, winding direction |
| Quality level | Pinhole control, inspection method, certification pack |
Aluminum Foil Jumbo Roll for Sensitive Medical Packaging with Tamper Evident Features delivers a high-barrier, conversion-ready substrate for medical and pharmaceutical packs that demand sterility protection, reliable sealing, and visible opening evidence. Available in common packaging alloys like 8011, 8021, and 1235 with O or hard tempers, these jumbo rolls support heat-seal lacquers, peelable TE systems, delamination evidence structures, and message-reveal designs. With customizable thickness, width, surface finish, and coating options, the foil is ideal for medical pouches, sachets, lidding, strip packs, and diagnostic packaging, helping brands improve safety, shelf life, and compliance while maintaining high-speed converting performance.
