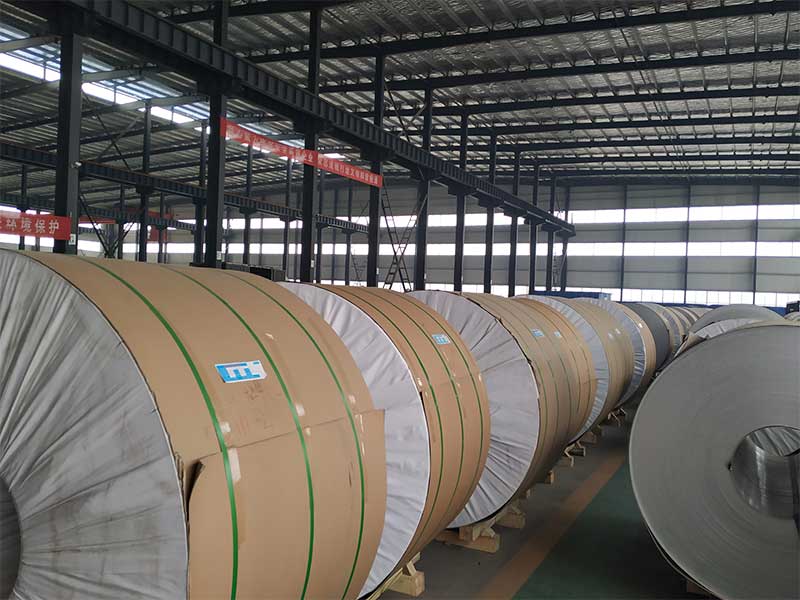

Anodized Aluminum Coil

TECHNICAL SPECIFICATIONS

1. Thickness: 1-3mm

2. Width: 200-1600mm

3. Material (alloy): 1050, 1060, 1070, 1100, 1235, 3003, 3004, 3015, 3005, 3105, 5005, 5052, 5757, 5083

4. Alloy Temper: H12 / H14/ H16/ H18/ H22/ H24/ H26/ H28/ H32/ H34/ H36/ H38/ O/ F/ H111/ H112

5. Inner diameter: 150mm (aluminum core), 405/505mm (paper card)

6. Outer diameter: 600 to 1,500mm

7. Material Of Coating: PE/PVDF

8. Thickness Of Coating: 10um-25um, can be customized.

9. Colors: It is up to the requirement of our customers.

10. Pencil Hardness: ≥2HB

11. Impact Resistance: ≥50kg/cm

12. Boiling Water Resistance: 2 Hours Unchanged.

13. 2%HCL 24h Unchanged.

14. 2%NaOH 24h Unchanged.

Anodized aluminum coil Primary Competitive Advantages:

Experienced Technical Staff , Guarantee / Warranty, International Approvals , Facotry price , Product Performance , Prompt Delivery , Quality Approvals , Reputation , Good after-sale Service with money back guarantee.

Coating Aluminum Coil can be widely used in ACP producing.

Aluminum Sheet For Autobody

5052-O aluminum sheet, 5182-O aluminum sheet, 5754-O aluminum sheet, 6016-T4 aluminum sheet

Aluminum sheet for construction

The aluminum plates used in construction include single-layer aluminum plates, composite aluminum plates, curtain wall plates and other materials.

Aluminium Sheet For Marine

Aluminum alloys with a thickness of 3mm~50mm for the construction of hull structures, superstructures and other offshore facilities.

Aluminium Sheet For Marine plates and LNG plate

5083 – O, H112, H116, H321Gauge3 – 200mm

Aluminum Sheet Coils For Trailers And Tankers

3003-H16 Aluminum Sheet, 5052-H32 Aluminum Sheet, 5083-O H111 Aluminum Sheet, 5454 Aluminum Sheet
