Aluminum sheets

5083 aluminum sheet

  • Alloy5083
  • TemperO / H12 / H14 / H16 / H18 / H19 / H22 / H24 / H26 / H28 / H32 / H34 / H36 / H38 / H111 / H112 / H114 / H116 / H321
  • Thickness0.15-600mm
  • Width20-2600mm
  • Port of LoadingQingDao,China
  • CertificatedISO9001:2015
Email

5083 ALUMINUM SHEET DESCRIPTION:

5083 aluminum sheet belongs to Al-Mg-Si aluminium alloys. Its main contents are Magnesium and Silicon except Aluminum. Over 4.0% of Magnesium enables 5083 aluminum sheet to have excellent resistance to correction, and easily to welded. By adding cooper, 5083 aluminum sheet has 28% Electrical conductivity.

5083 aluminum sheet also has good forming characteristic for either hot or cold working. But hardening is accomplished by means of cold working only. Besides, 5083 aluminum sheet does have good strength but non-heat treatable.

5083 ALUMINUM SHEET CHEMICAL COMPOSITION:

ELEMRNTSMgSiIronTiCuMnCrZnOthers TotalAlu
CONTENT (WT%)4.0-4.9≤0.40.4≤0.15≤0.10.4-1.00.05-0.250.250.15Remain

5083 Aluminum sheet Mechanical Properties:

Typical TemperTensile StrengthYield StrengthElongationThicknessWidthLength
(KSI)(KSI)(%)(mm)(mm)(mm)
O(annealed)4221140.2-350500-3100Max1600
H122432310


H116463310


H321483310


5083 ALUMINUM SHEET APPLICATIONS:

LNG ship construction

Pressure vessels

Storage tanks

Welded structures (high strength)

Armor plate

Drilling rigs

RELEVANT GRADE OF 5083 ALUMINUM SHEET:

Relevant grade of 3004 Aluminum Sheet

5083 ALUMINUM SHEET PACKING:

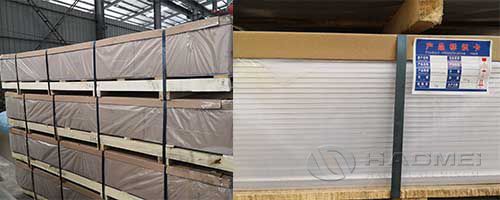

5083 aluminum sheet of Haomei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.


As a China-based 5083 aluminum sheet manufacturer and supplier, we at Haomei also produce aluminum slit coil, aluminum strip, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
